Where do all the connectors attach to the Touchscreen Computer on the ROTOR?

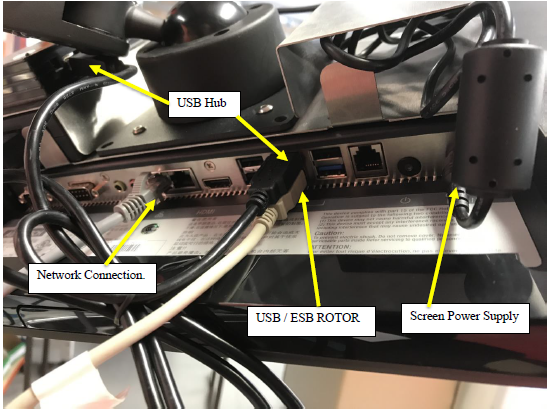

Answer : The image below shows an example of the connections on the bottom of the TouchScreen (MCI) Computer on the ROTOR.

The USB/ESB ROTOR connection should be plugged into a USB 3.0 port (Blue).

Please Note : The network connector may not work in both positions as it depends on the way the MCI computer has been set up. The easiest way to check this is if the network connection is live the lights at the connection will flash when the cable is plugged in.

If you require more information please contact [e-mail] for assistance.
